Product attributes
Brand ：EVERTOP
Models：XGF6-6-1
Models：CE
Country of origin：CHINA
Trading information
Minimum minimum order size ：1 Set
Price：USD 10,000 – 50,000 per Set
Payment method：30% by T/T in advance as deposit, balance 70% by T/T or irrevocable L/C at sight before shipment
Supply capacity ：20 sets per month
Delivery date ：15-30 days
Conventional packaging：Wooden case
Product description

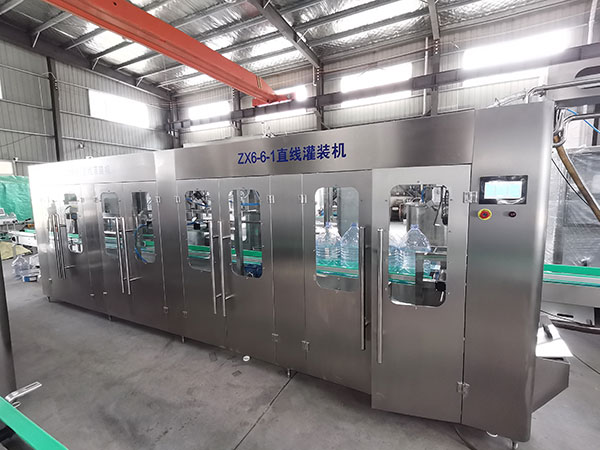

1.Model:XGF6-6-1
2.Capacity: 500-600B/H
3.Material: The material which contact directly with the liquid is the SUS304 (Food grade), made in China
4.The 3-in-1 is mainly used to fill pure water, mineral water, wine.
5.Characteristic:
5.1 This is linear rinsing, filling, capping machine. It is suitable for 3L to 10L bottles. When you finish producing 3L bottle and turn to fill 10L bottle, just need adjust the bottle position, without changing any accessories.

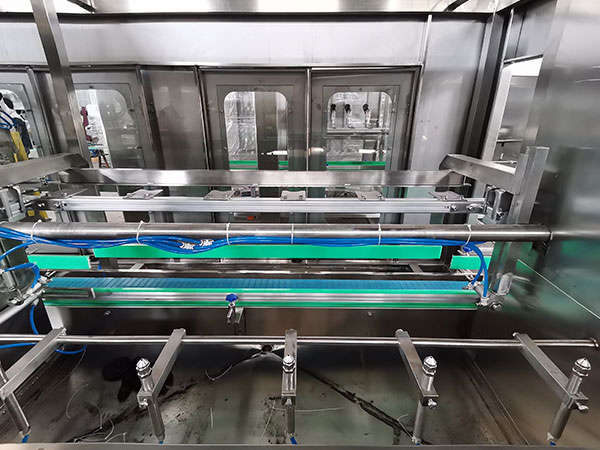

5.2 Rinsing heads: 6 pieces

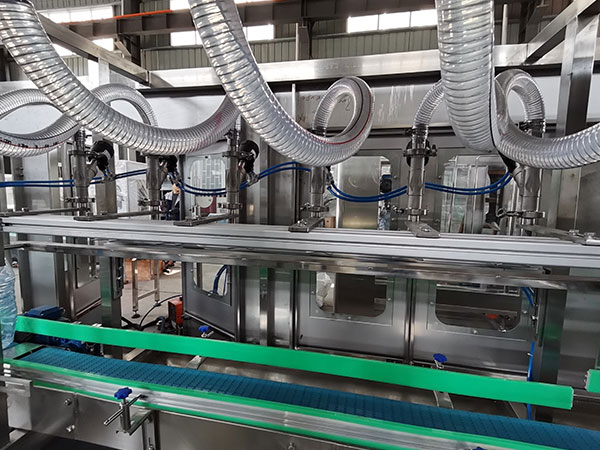

5.3 Filling heads: 6 pieces
5.4 Capping head: 1 piece
5.5 Independent electricity box makes sure every electrical appliance works normally.
6.Disposition:
6.1 Motor: SIEMENS, Germany
6.2 PLC: Mitsubishi, Japan
6.3 Touch screen: WEINVIEW, Taiwan China
6.4 Electricity appliance: SCHNEIDER, France
7.Volume of PET bottle: 3L-10L
8. Filling precision: ±1%
9. Pressure of washing: 0.3MPa
10. Washing consuming clear water: 600-800kg/h
11. Gas consumption: 0.3m³/min
12. Power of motors:5KW
13. Dimension:5800×1200×2100mm
14. Weight: 1800KG
