Country of origin： CHINA
Minimum minimum order size ：1 Set
Price：USD 15,000 – 150,000 per Set
Payment method：30% by T/T in advance as deposit, balance 70% by T/T or irrevocable L/C at sight before shipment
Supply capacity ：20 sets per month
Delivery date ：15-30 days
Conventional packaging：Wooden case

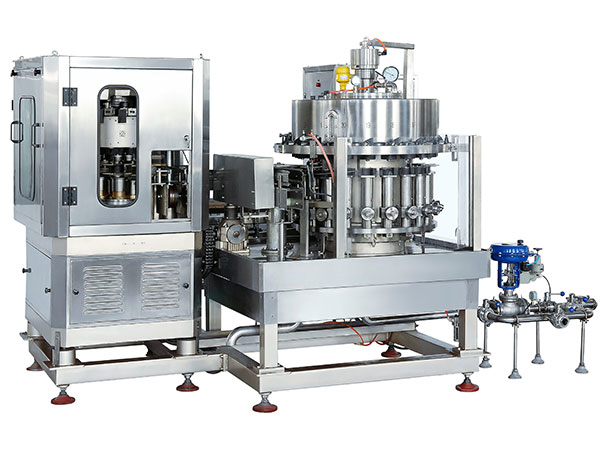

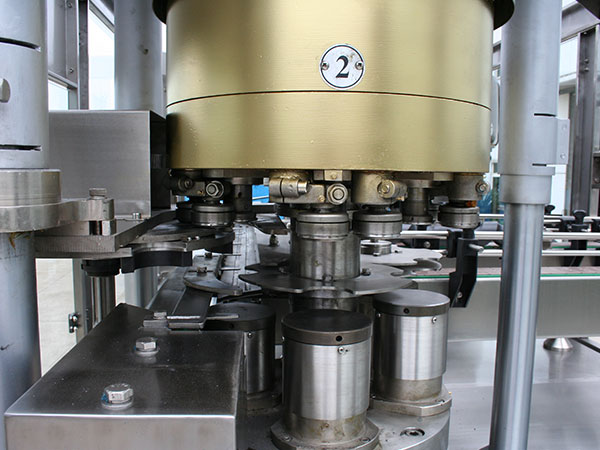

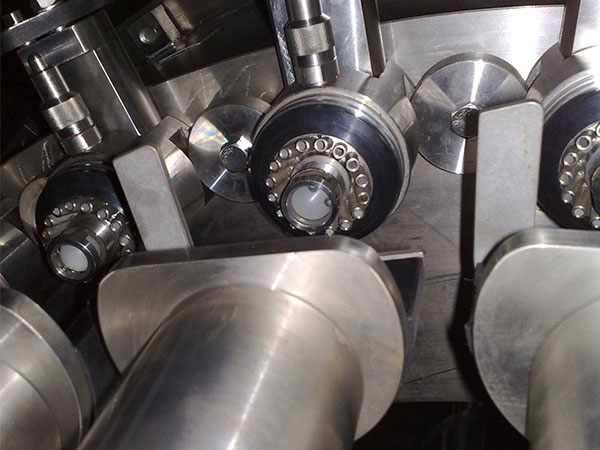

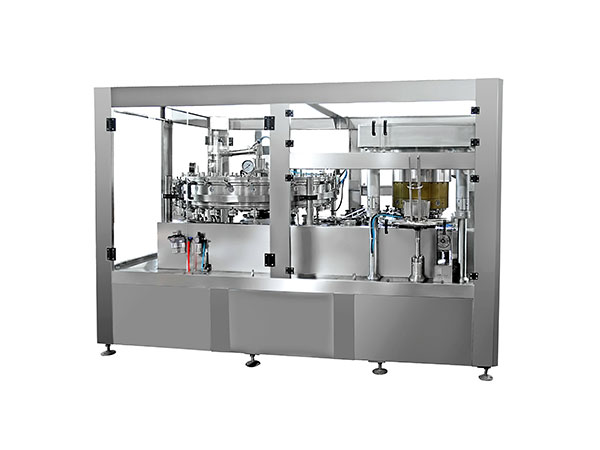

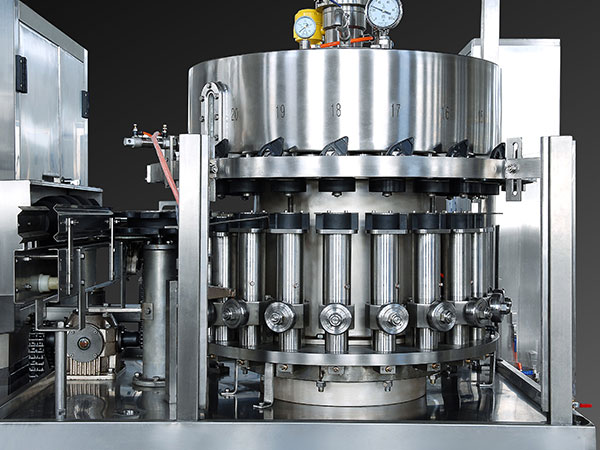

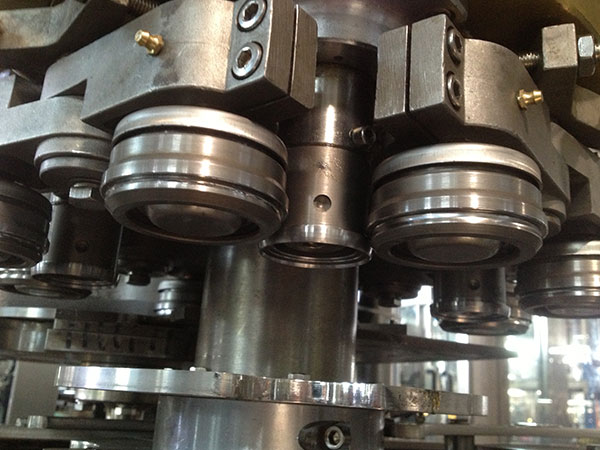

This machine is suitable for fill and seam of carbonated drink, beer, cola, soda and so on.
Filling and Capping is integrated design. The filling system is powered by capping system to ensure both of them keep absolute synchronization and coordination. Adopting the current advanced mechanical, electrical, pneumatic control technology, basic on the principle of isopiestic filling. It has lots of advantages, such as fast filling speed, surface stability, low loss material, high sealing quality, machine running smoothly, nice appearance, easy operation and maintenance, the production rate of frequency control, etc. It is ideal equipment for medium-sized beer, beverage plant.
The main electric elements adopt “Mitsubishi” PLC, frequency converter and proximity switch.
Setup the production speed on touch screen. Machine alarm automatically of all common malfunctions and show the cause and position of malfunction, PLC detect and decide to continue or stop the machine according the level of malfunction.
Item No: DGF24-4
Filling heads: 24
Capping heads: 4
Can Diameter: Φ52.3-99mm
Can height: H39~H168mm
Total power of motor: 4.5Kw
