Country of origin： CHINA
Minimum minimum order size ：1 Set
Price：USD 5,000 – 100,000 per Set
Payment method：30% by T/T in advance as deposit, balance 70% by T/T or irrevocable L/C at sight before shipment
Supply capacity ：20 sets per month
Delivery date ：15-30 days
Conventional packaging：Wooden case
1. Technical parameter:
1.1 Facility model: ET-350
1.2 Facility overall size: L12000×W1100×H2100mm
1.3 Facility overall size, Main equipment: L12000×W1100×H2100mm
1.4 Shrinkage machine: 4200×1100×1700mm
1.5 Wrappage max size: L2400×W650×H450mm
1.6 Shrinkage film material: PE
1.7 Shrinkage film thickness: 0.03-0.15mm
1.8 Thermo shrinkage tunnel max temperature: 160-260℃adjust at will
1.9 Max output per minute: 1-50 packages
1.10 Facility power: 25Kw
1.11 Actual power: 20Kw/h
1.12 Pressure requirement: 380V/50-60HZ
1.13 Facility weight: 2500
1.14 Air pressure: 0.6-0.8mpa
1.15 Working noise: ≤65db
1.16 Import bottle convey belt width: 541mm
1.17 Fan: 1.1Kw, 3set 380V, 60W, 6sets, 380V
2. Configuration parameter
2.1 OMRON: PLC controlling system
2.2 WEINVIEW: Touch Screen
2.3 Taiwan AIRTAC pneumatic component 1set
2.4 Taiwan TELTA transducer 2sets
2.5 Stainless steel wing heating tube 12pcs
2.6 China-USA cooperation Teflon convey belt.
2.7 Shanghai HEMEI motor and Zhenjiang TAILI worm derailleur.
2.8 South Korea AUTONICS photoelectrical switch, approach witch
2.9 Thermo sealing knife aluminum casting heating board, even temperature, long usage life, our company special production
2.10 Whole machine appearance plastic spray, machine rack adopts to high-quality carbonated steel, main part adopt to stainless steel.
2.11 Wooden case and wrappage film separate package.
3. Product instruction
3.1 Frequency converter speed adjust, two segment convey device.
3.2 Bottle pushing, thermo sealing and cutting whole movement adopted to pneumatic fracture
3.3 Proximity switch control film length
3.4 Touch screen, PLC system greatly increase facility movement reliability
3.5 Three-wind recycle fan machine, ensure shrinkage tunnel inside even temperature.
3.6 Super big wind-volume cooling system, ensure quickly get into shape.
3.7 Anti-high temperature teflon convey belt, convey steadily, high-strength anti-abrasion.
3.8 Frequency limitless speed adjust convey belt frame.
3.9 Convey belt height can make according client requirement, adjust range: ±100mm
3.10 Wing stainless steel heating system, endurance
3.11 Meet with product instant stop requirement product-bearing rack device ensure production line consistency.
4. Technical requirement:
4.1 Package type:
(1)350/500/550/600ML big bag: 4×6, 4×5; small bag, 3×4, 3×5 four type of package.
(2)1L/1.5L/2L/2.5L big bag: 3×3, 3×4; small bag: 2×2, 2×3 four type of package
4.2 Regarding can, we suggest to adopt package with tray, pack steadily.
4.3 Package speed: 1-25packages/min
4.4 Meet with pre-treatment filling speed of filling machine.
big bag: 4×6. 4×5, (24000－29000b/h), small bag: 3×5, 3×4, (15000－18000b/h).
big bag: 3×4, 3×3 (10000－14000b/h), small bag: 2×3, 2×2(5000－7000b/h).
4.5 Package material: PE thermo shrinkage film width(200－600mm), thickness(0.03－0.12mm)
5.1 According production line, auto arrange, and combine our company ET-350 automatic sealing and cutting mature fracture, as the machine fracture.
5.2 The production line can match with any company filling device. For its stability, the production line main component all adopt to import, joint venture famous brand.
5.3 If pre-treatment filling machine output is comparatively high, can divide two-way, auto seal and cut at the same time, to meet with output requirement, among ET-350 fracture has original creation, it is the high-efficiency, highest economical collocate at the same time.
5.4 PE film adopt to flake, upper and down roll, auto seal and cut to roll type and up to shrinkage efficiency.
6. Main structure and produce process

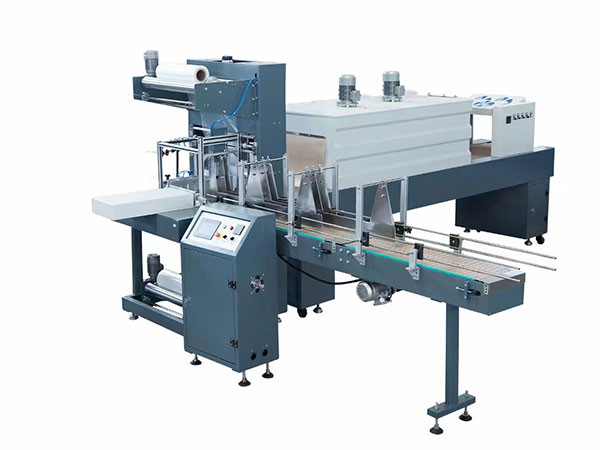

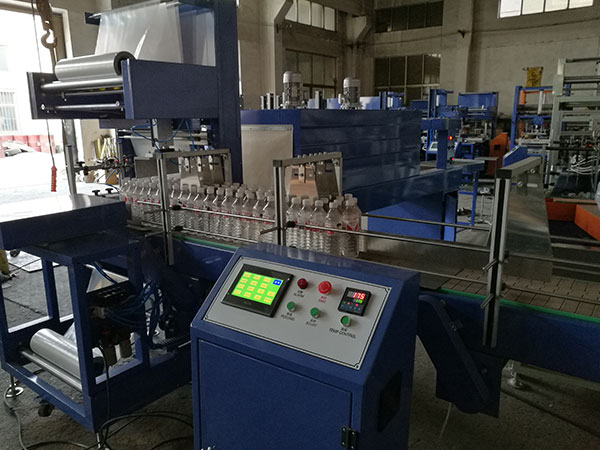

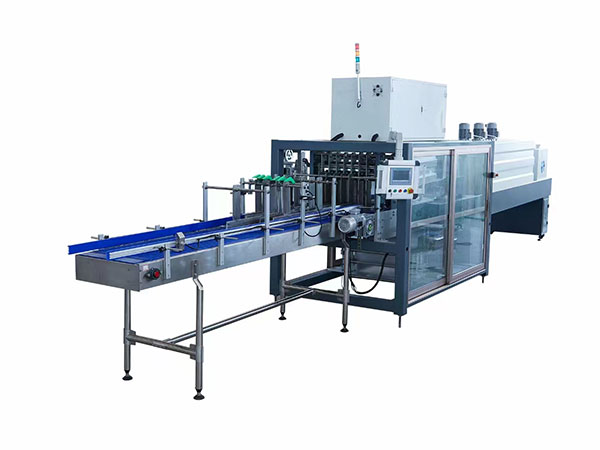

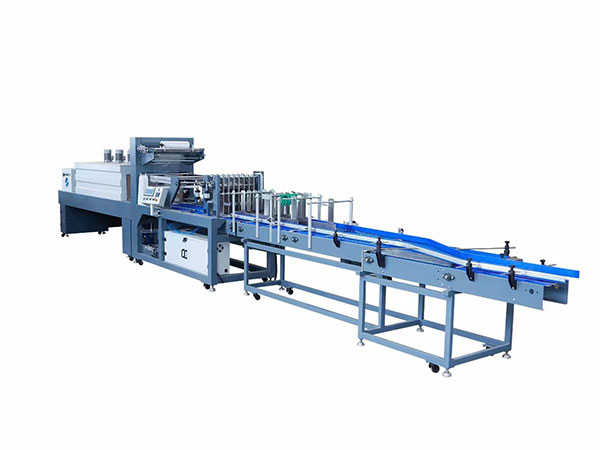

Main structure: the equipment is made of bottle loading system, packing machine, thermo-shrinking machine, no-drive roll convey machine and electric control system, pneumatic control parts and so on.

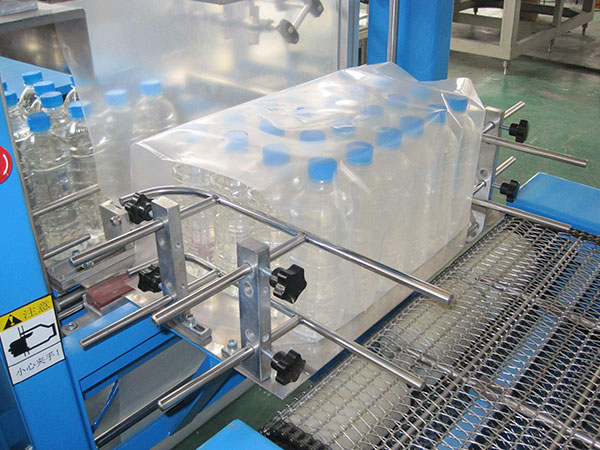

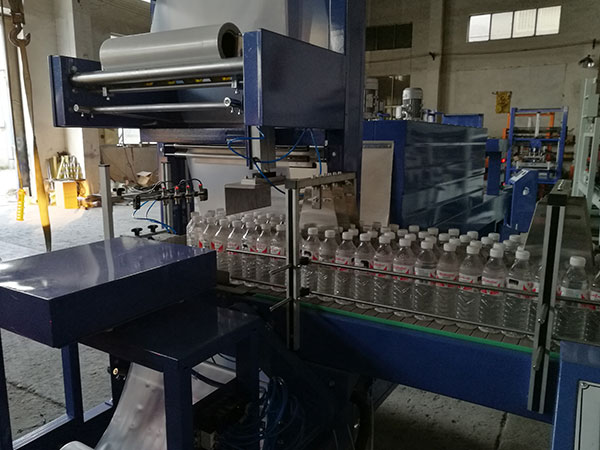

Produce process: ET-350 automatic linear packing machine is produced at the basis theory of the film shrinking after heated. The whole packing process is including photoelectric sensor testing, PLC treats the collected signal, convey belt delivering the bottles, the dividing board divide the bottles into lines and the push the bottles to be filmed, the thermo-sealing knife seal the film into bags, the cooling tunnel cool the bags.
7. The function of the specification (three parts)
1. ET-350 auto linear convey fracture, joint filling machine convey belt, control via frequency converter, speed adjust freely, can auto divide and sort bottles.
2. ET-350 automatic film wrapping fracture, can complete wrapping auto film covering and sealing, cutting function.
3. ET-350 auto thermo shrinkage cooling fracture, can complete auto contraction and cooling function after film covering.
