Country of origin： CHINA
Minimum minimum order size ：1 Set
Price：USD 15,000 – 150,000 per Set
Payment method：30% by T/T in advance as deposit, balance 70% by T/T or irrevocable L/C at sight before shipment
Supply capacity ：20 sets per month
Delivery date ：15-30 days
Conventional packaging：Wooden case

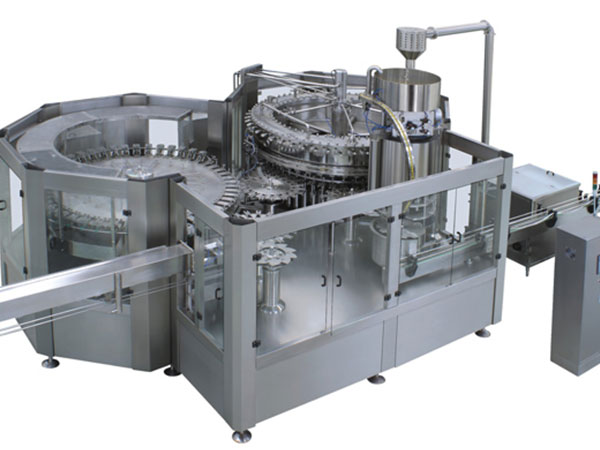

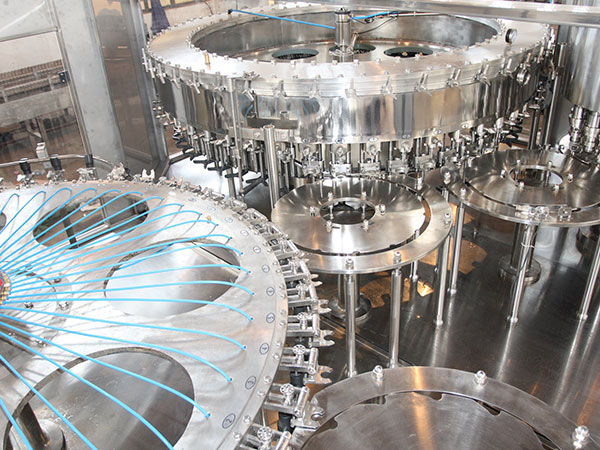

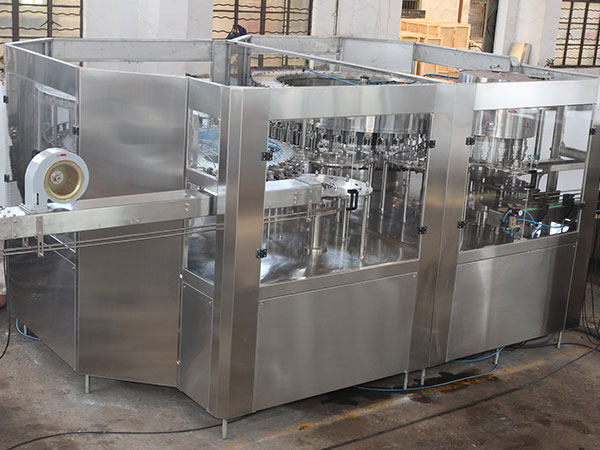

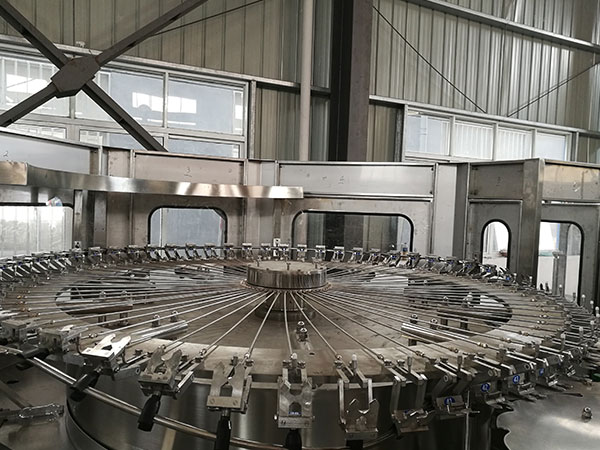

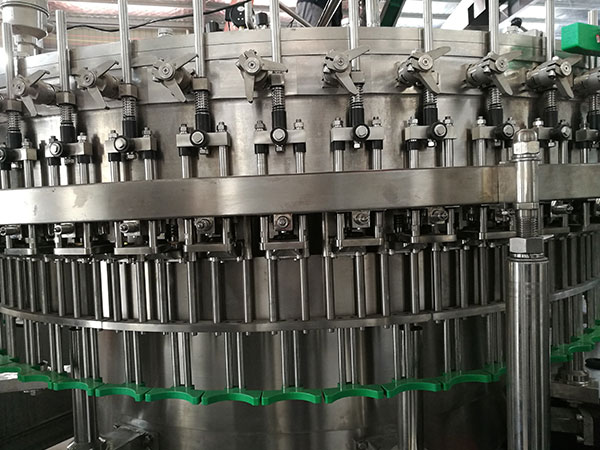

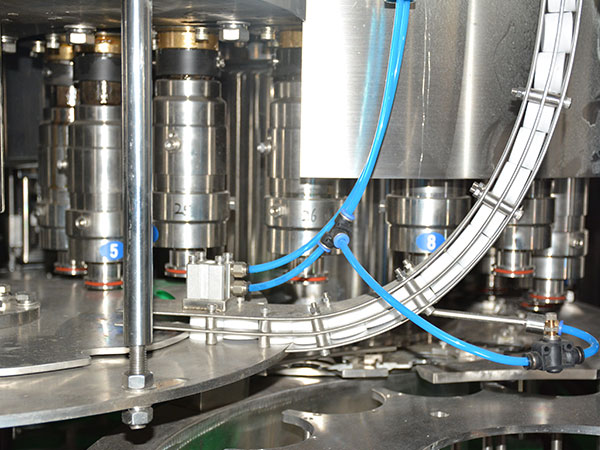

(1) This carbonated soft drink filling machine is a unique design combining the three machines of bottle washing, filling and capping in one to decrease the power, to save space.
(2) It is applicable for carbonated soft drink filled in plastic bottles and capped with plastic caps, with optional capacity from 2000BPH to 30000BPH.
(3) It is easy to change the shape of bottles, which can be done by changing the star wheel without adjusting the height of the machine.
(4) The machine case and the parts contacting with the materials are made of stainless steel which ensures the good external look and easy washing. The transmission mechanism and the gear are equipped with firing A4 carbon steel.
(5) It uses inverter to control the main machine motor. And it has an output number indicating function which is easy to control the adjustment of the output.
|Bottle shape:||Round or square|
|PET bottle: (mm)||(Bottle Diameter): φ50-φ110mm (Height):150-310mm|
|Cap:||Plastic screw cap|
|Filling pressure:||0.3-0.5 MPa|
|Rinsing pressure:||0.2-0.3 MPa|
|Filling volume: (L)||0.1L-3L|
|Overall size: (mm)||2600*1965*2350||2900*2200*2350||3800*2200*2350||4080*2950*2400|
