Product description

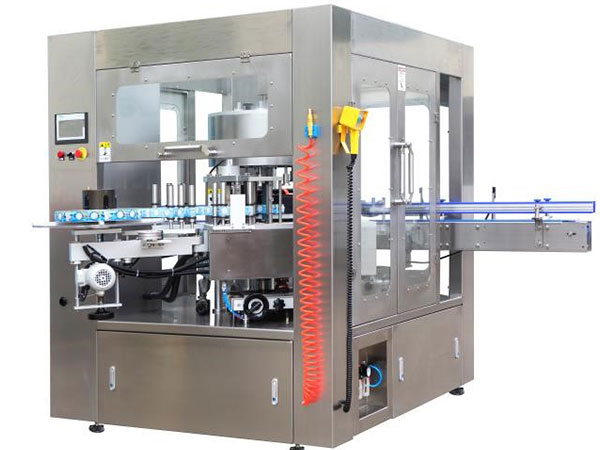

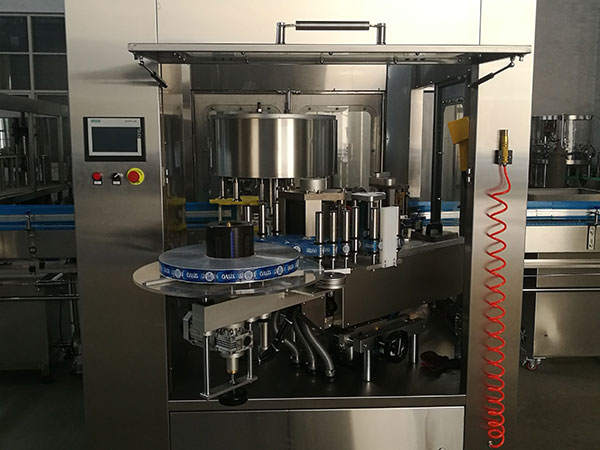

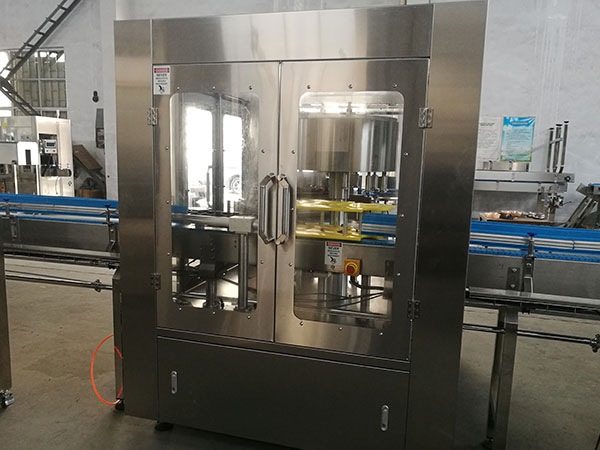

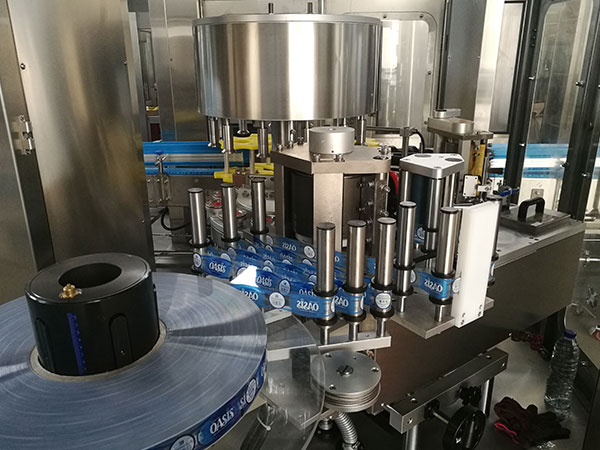

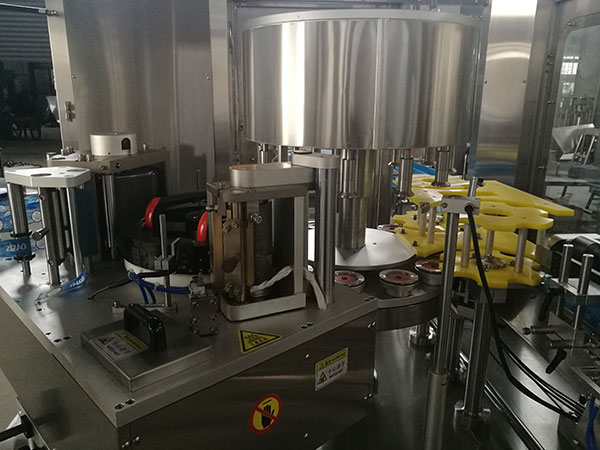

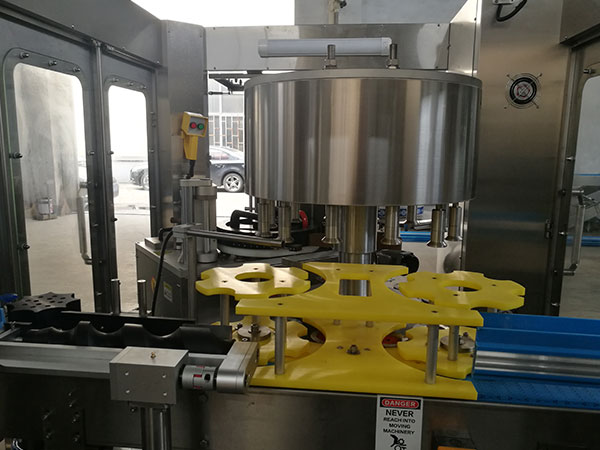

This machine is fully automatic hot melt glue labeling machine, suits for different industries for mineral water, soft drink, seasoning, wine and cosmetics and others. It is easy to adjust the label cutting knife, easy and accurate to use hand handle to adjust the position of cutting knife, the vacuum drum is made of high rigid material to reduce friction and static, changing the bottle parts within ten minutes. The vacuum manifold at the lower part of drum and cutter is made of heat & wear resistant material. This machine with advantage of compact design, floor space, is used for many different bottles, high production capacity and so on. It is the best choice for clients.
The main frame is welded by constructed carbon steel. The appearance is painted by one-time anti-rusting, and then two times blue color painting, finally covered by AISI304 stainless steel.
Main driving gear cases are lubricated by long time grease.
Bottles are entered labeling machine by feeding screw.
All exposed shafts are made of AISI304 stainless steel with h7 precision.
One independent labeling station with label roll
Label feeding device is controlled by motor with 1 braking devices and photocells.
Label orientation system is controlled by photocell and adjusted easily.
No bottle no labeling
Bottles in-feed in the left and out in the right, stainless steel chain (width 82.6mm);
Adjustable support feet and screw mother are made of stainless steel.
Method of Operation
The containers are picked up by the infeed star wheel and transferred to the container table. The container rotation begins when they are positioned between container plates and centering bells.
The speed of the feed roller is adjusted to the required label length for continuous web tension. A standard threading unit ensures optimal film feed. In the cutting unit, the labels are precisely cut while a PLC command and servo-motor provide an exact cut-off point.
Two narrow strips of hot melt glue the labels together, which are applied by a heated glue roller to the leading and trailing label edges. The label with the glue strip on its leading edge is transferred to the container. This glue strip ensures an exact label positioning and a positive bond. As the container is rotated during label transfer, labels are applied tightly. Gluing of the trailing edge ensures proper bonding.
Process: Infeed bottle→ pre-position→ label cutting→ gluing→ labeling→ label by press out→ finish
Equipment constitutes:
Mainframe:
Siemens servo system
Siemens servo drive system
Siemens motion controller
Germany Siemens Touch-screen
Japan Panasonic, Digital Color Mark Sensor
Japan Panasonic, Detection Sensor for coating adhesive
Japan Panasonic, Photoelectric Sensor
Japan Panasonic, Photoelectric Sensor
Mechanical Parts:
| Transportation institution | TRANSTECNO motor 750W (with deceleration by TRANSTECNO), inverter speed control |
| Conveyor | Italy FLEXON LF820-K325 industrial nylon chain plate conveyor |
| Mainframe transportation institution | TRANSTECNO motor 2.2Kw (with deceleration by Transtecno) |
| Sub bottle institution | industrial worm sub bottle institution |
| Into bottle institution | with worm sub bottle institution and star wheel position feeding institution to ensure the accuracy and stability of loading |
| Position institution | Mechanical pre-location, using the cam wheel institution to planish the bottle for label positioning |
| Labeling institution | Containers are pick up by rotary wheel, labeling during the rotation. |
| Supply label institution | high speed servo OPP label supply system (drive by servo-motor) |
| Pressing label institution | Arc brush unit |
| Guided bottle institution | adjust by double coordinate section guide rail |
| Glue supply system | hot melt glue supply system (German SEIMEC control system) ensures the accuracy and uniformity of gluing |
Safety part of the machine:
| Safety protection | In order to keep the operator safety, when the machine is running please close the protective doors |
| Lack of label alarm | Set an alarm to remind the operator to change the label when the label will be use out |
| Lack of bottle alarm | When lack of the bottle the machine will stop and make an alarm. The machine will restart automatically as soon as the bottles have been put that will facilitate on-line production |
| Leak of labeling alarm | To control the quality of labeling |
| Pressure testing | When the pressure cannot meet the equipment requirement, the machine will stop to against bad products produce |
| Vacuum testing | When the vacuum cannot meet the equipment requirement, the machine will stop to against bad products produce |
| Temperature testing | When the temperature cannot meet the equipment requirement, the machine will stop to against bad products produce |
Technical Parameters:
| Name | OPP Hot Melt Labeling Machine |
| Power supply | Three-phase 380V 60 Hz 7W |
| Machine dimensions: | 2650mm×1700mm×2010mm (can be adjusted) |
| Method of speed adjustment: | uninterrupted – adjust rate |
| Labeling precision: | ±1mm |
| Labeling speed: | 0-24000BPH |
| Maximum label width | 200mm (standard width, can be adjusted) |
| Maximum outer diameter of label | 600mm |
| Paper core Hot melt | 152mm |
| Labeling glue: | glue at both ends of each label with hot melt |
| Gluing temperature: | 120~160℃ |
| Labeling type for products: | suitable for round or square containers made of plastic, metal, glass |
| Type of label: | BOPP, paper-plastic composite film, paper label |
| Labeling stations: | 24 |
| Machine weight: | about 3500 kg |
