Product attributes
Brand：EVERTOP
Models： SLM
Certificate： CE
Country of origin： CHINA
Trading information
Minimum minimum order size ：1 Set
Price：USD 10,000 – 100,000 per Set
Payment method：30% by T/T in advance as deposit, balance 70% by T/T or irrevocable L/C at sight before shipment
Supply capacity ：20 sets per month
Delivery date ：15-30 days
Conventional packaging：Wooden case
Product description

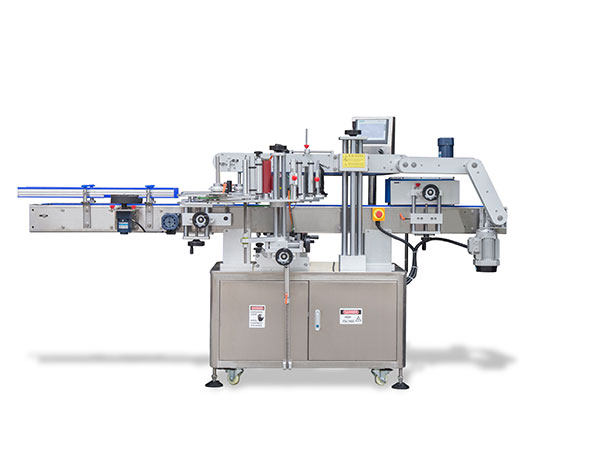

This automatic self-adhesive sticker labeling machine adopts mature technology PLC control system, operation is stable and high-speed;
Using touch-screen man-machine interface operating system, simple and efficient;
Upgraded disc label station design, also can suit for conical and flask bottle.
Screw adjustment to suppress body movements accurately.
Synchronization chain mechanism ensures labeling smooth and precise calibration.
Transmission-type rolling bottles, make sure the labels attached more firmly;
Labeling transparent label without bubble and self-adhesive label without wrinkle;
Butterfly designed station, machine’s angle can be adjusted to adapt the bottle’s shape.
Imported electric elements, stable performance, low failure rate;
Adopting photoelectric detection, PLC control system, software operation, conveyor belt, labeling accurately and high precision;
Can be operated alone or contract with the production line;
No bottle not labeling, automatic alarm when achieve leakage label.
The whole machine uses the material of S304 stainless steel and anodized senior aluminum alloy.
The bottle separated by separate bottle device, after the order bottle device, the bottle transported to the conveyor, move stably through the press bottle device;
When the sensor tests the bottles, send signal to PLC;
The PLC received the signal and send to servo motor.
The servo motor driving the outing label motor to send label.
The bottle transported to the brush label device, which past the label on the bottle more smoothly and then to the next process.
| Model | ET |
| Operating direction | Left or Right |
| Capacity(pcs/hour) | 1,000-30,000 |
| Conveyor speed(m/min) | ≤40 |
| Labeling Accuracy | ±1.0 mm |
| Label application | Adhesive sticker, opaque label |
| The inner diameter of label roll | 76 mm |
| The outer diameter of label roll | 350 mm(max) |
| The application of label | Height: 15-300 mm, length 15-300 mm |
| The application of label objects | Can customizing |
| Printer use air | 5kg/cm2 |
| Power(w) | 1KW |
| Voltage (In China) | AC220V 50/60HZ Single side (Can customized as buyer need) |
| Weight(kg) | 500kg |
| Machine size(mm) | 2400(L), 1200(W), 1500(H)mm |
