Product attributes
Brand：EVERTOP
Models： RXGF18-18-6
Certificate： CE
Country of origin： CHINA
Trading information
Minimum minimum order size ：1 Set
Price：USD 15,000 – 150,000 per Set
Payment method：30% by T/T in advance as deposit, balance 70% by T/T or irrevocable L/C at sight before shipment
Supply capacity ：20 sets per month
Delivery date ：15-30 days
Conventional packaging：Wooden case
Product description

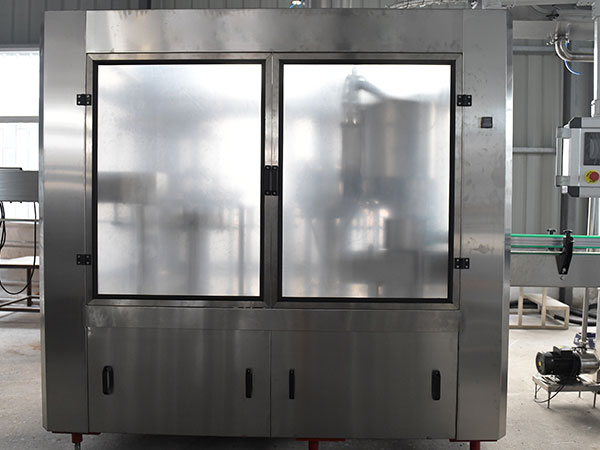

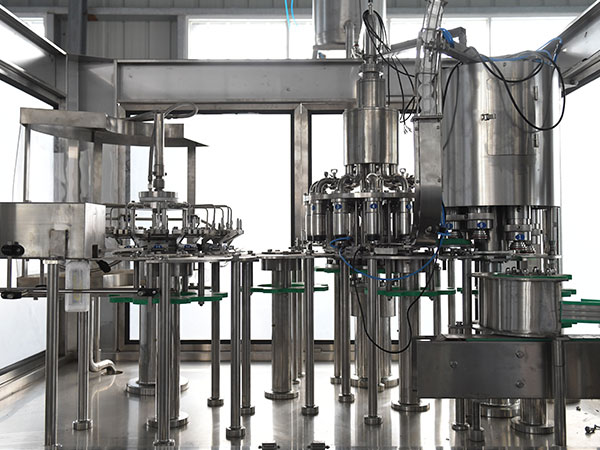

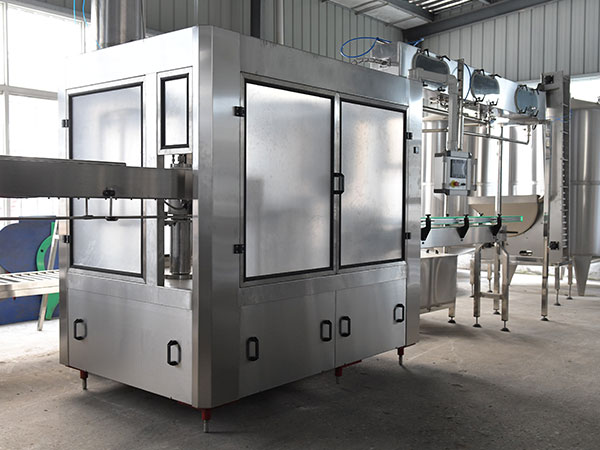

This automatic fruit juice filling machine is used in hot filling and sealing of juice, tea, milk, yogurt, wine, vinegar etc.

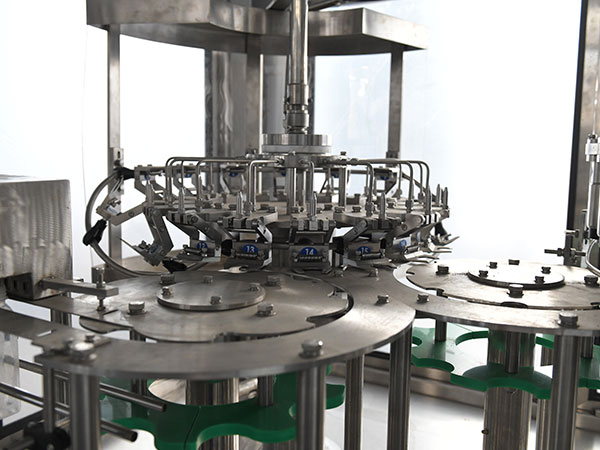

The machine integrates washing, filling, capping together.
The design is scientific and reasonable.
Its appearance is beautiful. Its operation and maintenance are convenient.

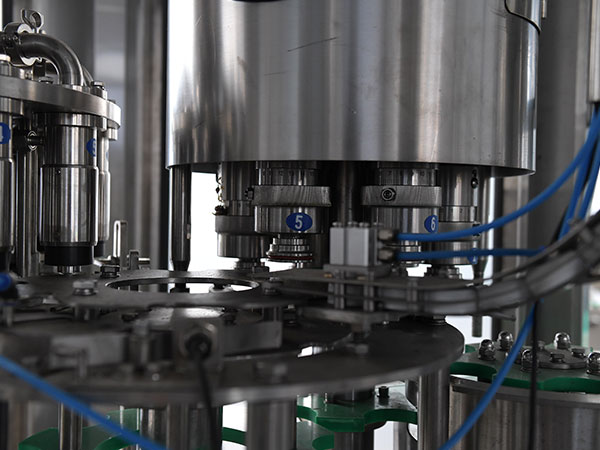

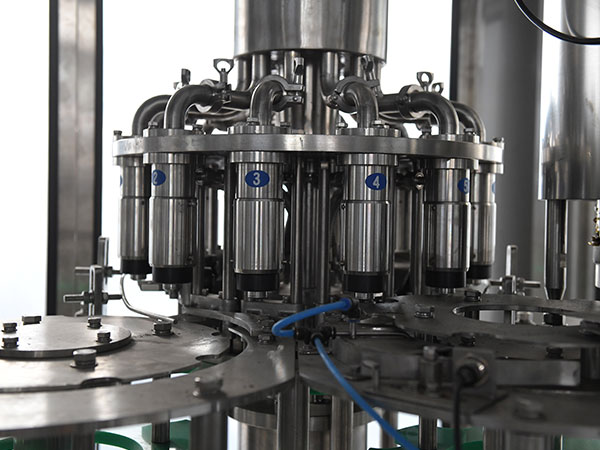

The machine adopts block bottle-neck hanging work state design, and filling valve adopts back flow design.
It can satisfy for 95 hereinafter hot filling technology demands.
It adopts person-machine interface touch-screen, PLC, transducer etc. advanced control technology.
The material contacting with liquid parts are adopt the SUS304/316 stainless steel.
The machine main motor, reducer, and electricity ware element, gas drive element etc. adopt famous international manufacturer products.
| Model | RXGF12-12-5 | RXGF16-12-6 | RXGF16-16-6 | RXGF18-18-6 |
| Production capacity (500ml) (b/h) | 2000-3000 | 3000-4000 | 5000-6000 | 6000-7000 |
| Filling precision | ±2mm (Liquid Level) | |||
| Bottle standard (Plastic/Glass) | (Bottle Diameter): Φ50-Φ100mm (Height): 150-310mm | |||
| Suitable cap shape | Plastic Screw Cap | |||
| Water pressure of washing bottle (MPa) | 0.2-0.25 (MPa) | |||
| Gas source pressure (MPa) | 0.6 | 0.6 | 0.6 | 0.6 |
| Gas consumption (M3/min) | 0.1 | 0.1 | 0.1 | 0.1 |
| Power (KW) | 4.0 | 4.4 | 4.4 | 5.2 |
| Weight (Kg) | 2200 | 2500 | 3000 | 3500 |
| Dimensions(L×W×H) (mm) | 1900*1500*2250 | 2230*1630*2250 | 2360*1830*2250 | 2600*1965*2250 |
| Model | RXGF24-24-8 | RXGF32-32-10 | RXGF40-40-12 | RXGF50-50-15 |
| Production capacity (500ml) (b/h) | 8000-10000 | 10000-13000 | 13000-15000 | 15000-20000 |
| Filling precision | ±2mm (Liquid Level) | |||
| Bottle standard (Plastic/Glass) | (Bottle Diameter): Φ50-Φ100mm (Height): 150-310mm | |||
| Suitable cap shape | Plastic Screw Cap | |||
| Water pressure of washing bottle (MPa) | 0.2-0.25 (MPa) | |||
| Gas source pressure (MPa) | 0.6 | 0.6 | 0.6 | 0.6 |
| Gas consumption(M3/min) | 0.4 | 0.5 | 0.5 | 0.6 |
| Power (Kw) | 5.2 | 6.2 | 7.8 | 8.5 |
| Weight (Kg) | 4500 | 5500 | 6800 | 8000 |
| Dimensions(L×W×H) (mm) | 2900*2200*2250 | 3880*2200*2250 | 3700*3000*2350 | 4500*3500*2400 |
