Country of origin： CHINA
Minimum minimum order size ：1 Set
Price：USD 5,000 – 15,000 per Set
Payment method：30% by T/T in advance as deposit, balance 70% by T/T or irrevocable L/C at sight before shipment
Supply capacity ：20 sets per month
Delivery date ：15-30 days
Conventional packaging：Wooden case

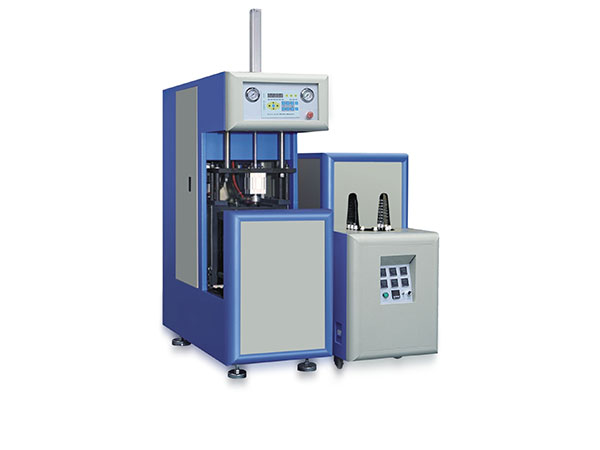

This semiautomatic bottle blow molding machine is suitable for producing PET plastic containers and bottles from 10-20000ml. It is widely used to produce the carbonated bottle, mineral water, carbonated drink bottle, hot juice filling bottle, pesticide bottle oil bottle cosmetics, wide-mouth bottle etc.
Adopting double crank to adjust mold, heavy locking mold, stable and fast

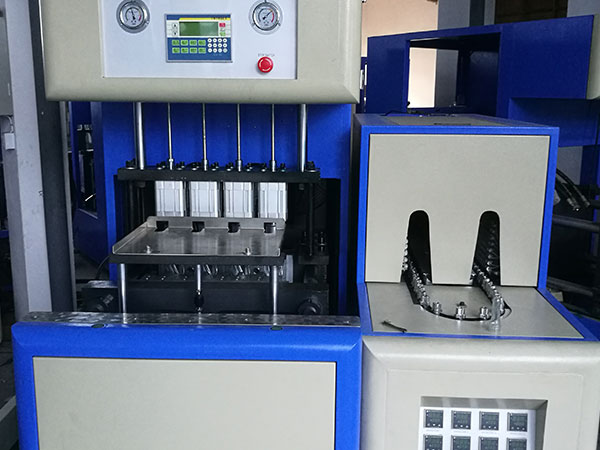

Adopt infrared oven to heat performs, performs rotated and heated equally.
The air system has been divided into two parts: pneumatic action part and bottle blow part to meet the different requirements for the action and blow. It can provide sufficient and steady high pressure for blowing large irregular shaped bottles.
The machine is also equipped with muffler and oiling system to lubricate the mechanical part of the machine.
The machine can be operated in the step-by-step mode and the semi-auto mode.
The machine is small with low investment, easy and safe to operate.
|Preform inner diameter||φ5mm-38mm|
|Molding||Max. mold plate Dimension (L x W)||350x380mm|
|Max. mold thickness||180mm|
|Mold opening stroke||160mm|
|Machine size and weight||Main machine (L x W x H)||160x60x161cm|
|Main machine weight||500Kg|
|Heater (L x W x H)||187x63x145cm|
